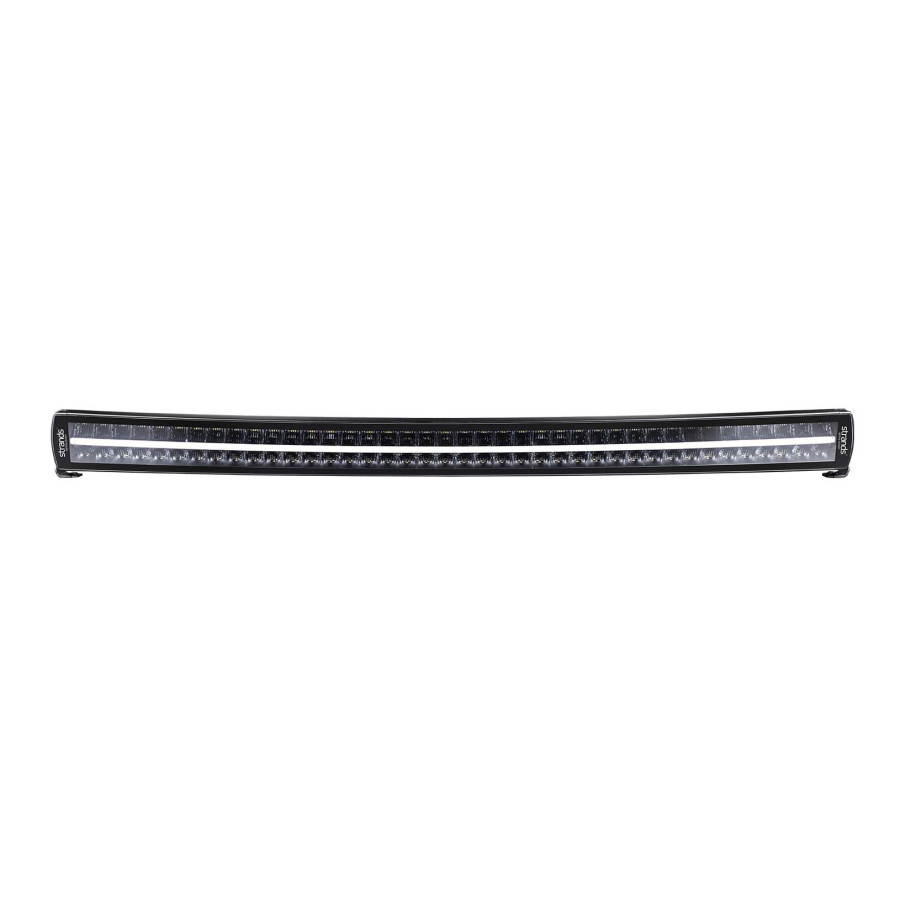

SIBERIA DRC 42

En dobbel LED-stang i buet form. Laget av eksklusive materialer og innovative funksjoner. Gir en optimal lysstråle med maksimal bredde uten å miste lengde. Leveres med dobbelt posisjonslys, velg mellom gult og hvitt.

Type of LED — Osram
PCS LED´s — 80
Voltage (V DC) — 10-40V DC
Theoretical effect (w) 12V — 400
Theoretical effect (w) 24V — 400
Consumption (w) 12V — High beam: 393.6 White position light: 9.5 Amber position light: 30
Consumption (w) 24V — High beam: 383.3 White position light: 9.5 Amber position light: 30
Theoretical lumen — 32000
Actual lumen — 15800

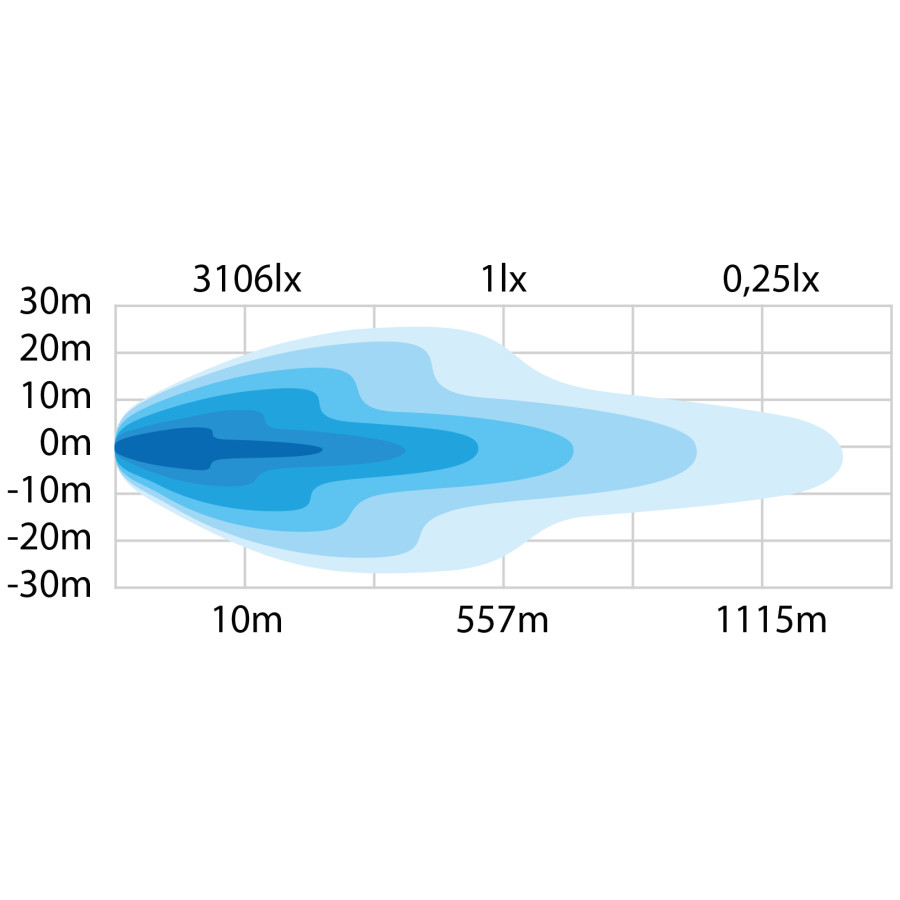

1 LUX @ m — 557
Kelvin — 6000
IP-class — 67/69K
Colour housing — Black
Colour lens — Clear
Colour LED´s — White and Amber
Beam pattern — Combobeam
Position light — Yes
Connection — Cable
Cable length (mm) — 2500
Material bracket — Stainless steel
Material housing/chassi — Aluminium
Material lens — Polycarbonate
Length (mm) — 1078,4
Depth (mm) — 71,6
Height (mm) — 76
Height including bracket (mm) — 89
Operating temperature — -20°C - +45°C
EMC — ECE R10
Black cable — - (Negative)
Red cable — + (Positive)
White cable — White Position light
Yellow cable — Amber Position light
Mounting details included — Screws. washers. Bolts
