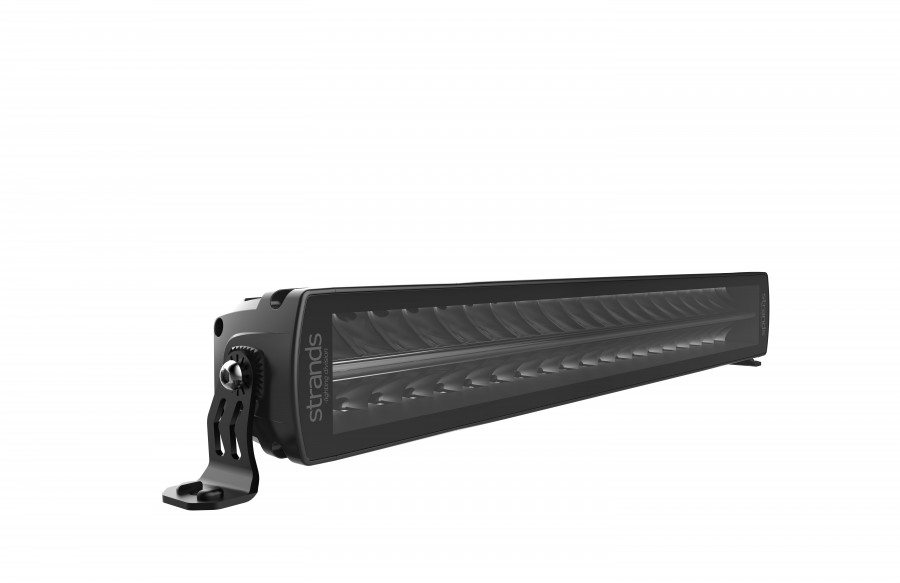

SIBERIA DR LED BAR 22

Siberia DR LED BAR is a double-row LED bar, created for your vehicle. The entire series is E-approved. Siberia has everything you need in function, design, and performance. The lens goes from edge to edge. Comes with a duo of position lights along the bottom of the bar. Choose between orange or white depending on your personal style.

Type of LED — Osram
PCS LED´s — 40
Voltage (V DC) — 10-40V DC
Consumption (w) 12V — 91
Consumption (w) 24V — 91
Consumption specific function (w) 12V — White position light: 5.5 Amber position light: 14.5
Consumption specific function (w) 24V — White position light: 5.5 Amber position light: 14.5
Theoretical lumen — 16000
Actual lumen — 6316
1 LUX @ m — 450
Kelvin — 6000
IP-class — 67/69K
Colour housing — Black
Colour lens — Clear
Colour LED´s — White

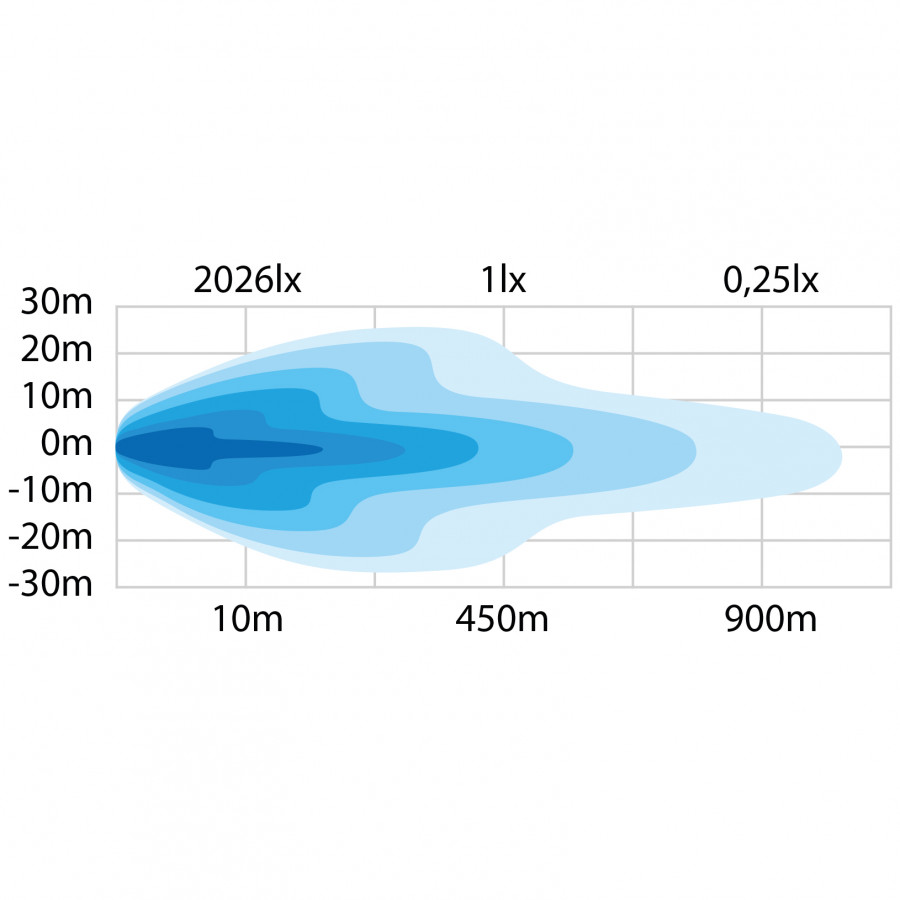

Beam pattern — Combobeam
Position light — Yes. white and amber
Connection — DT-4
Cable length (mm) — 500
Material bracket — Stainless steel
Material housing/chassi — Aluminium
Material lens — Polycarbonate
Length (mm) — 562
Depth (mm) — 71,6
Height (mm) — 76
Height including bracket (mm) — 89
Operating temperature — -20°C - +45°C
ADR-approved — No
E-approved — Yes
According to regulation — ECE R112
Reference number — 45
EMC — ECE R10
1 LUX at (m) for 1 unit — 450
Black cable — - (Negative)
Red cable — + (Positive)
White cable — White position light
Blue cable — Amber position light
