SIBERIA QB,QUBE LIGHT WORK LIGHT LED

Siberia Qube er en arbeidslampe utviklet for å gi bred lysspredning. Leverer 1 lux på 166 meter. Siberia Qube har et diskret, kompakt design, som gjør den perfekt på mindre kjøretøy hvor det ikke er plass til større lamper. Kan brukes både alene og i par. Lampen har også et dobbelt posisjonslys med gult og hvitt lys.

Type of LED — Osram
PCS LED´s — 4
Voltage (V DC) — 9-32V DC
Theoretical effect (w) 12V — 40
Theoretical effect (w) 24V — 40
Consumption (w) 12V — 37.1
Consumption (w) 24V — 36.5
Functions — Temperature control system
Theoretical lumen — 4800
Actual lumen — 2949

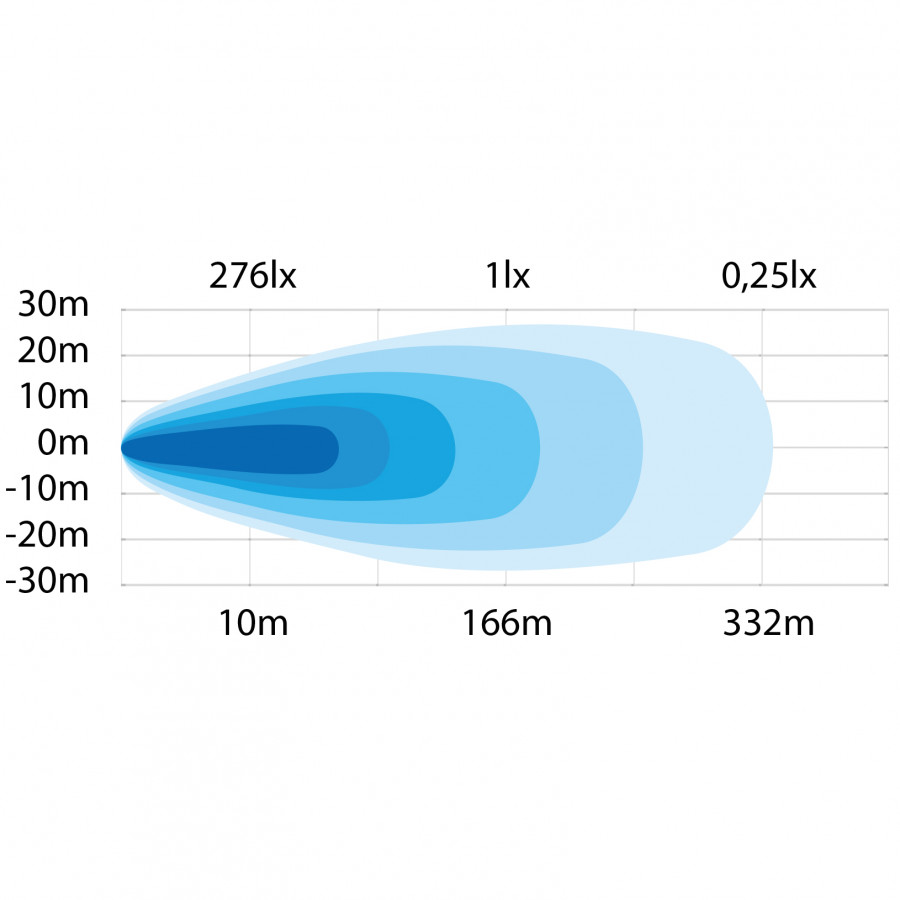

1 LUX @ m — 166
Kelvin — 6000
IP-class — 67/69K
Colour housing — Black
Colour lens — Clear
Colour LED´s — Amber
Beam pattern — Flood

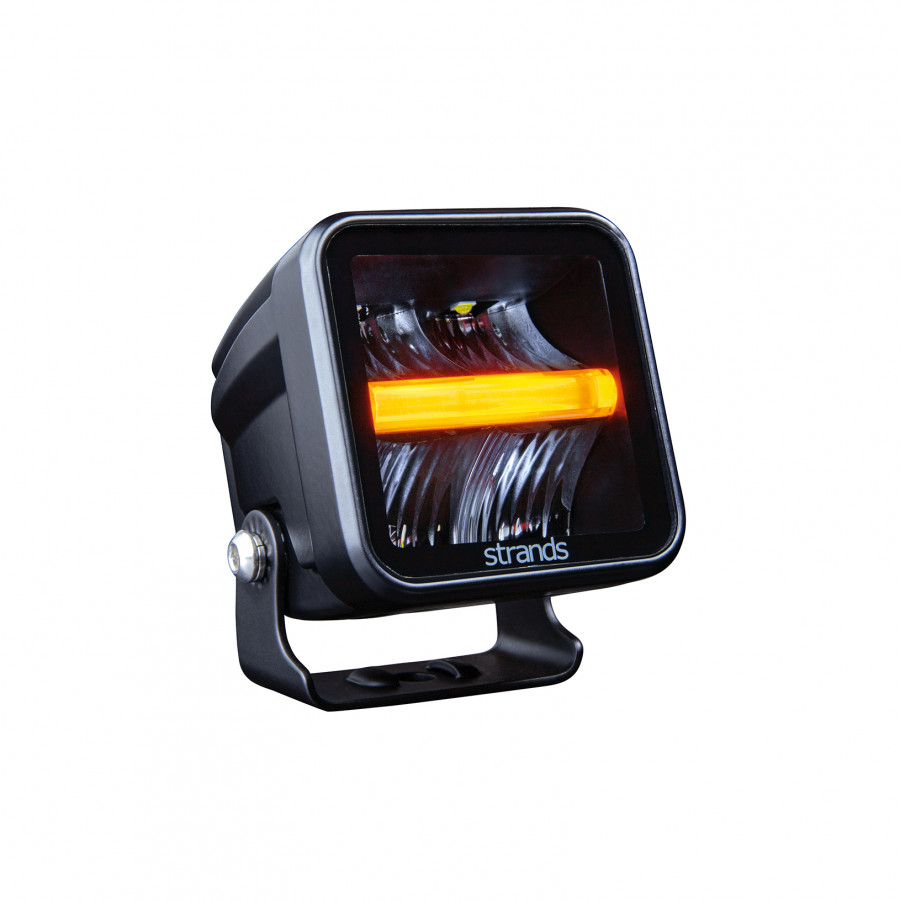

Position light — Yes. amber and white
Connection — DT-4
Cable length (mm) — 500
Material bracket — Stainless steel
Material housing/chassi — Aluminium
Material lens — Polycarbonate
Length (mm) — 72
Depth (mm) — 72
Height (mm) — 72
Height including bracket (mm) — 81,5
Operating temperature — -20°C - +45°C
ADR-approved — No
E-approved — No
EMC — ECE R10
Black cable — - (Negative)
Red cable — + (Positive)
White cable — White Position light
Yellow cable — Amber Position light
Mounting details included — Screws. washers. Bolts
